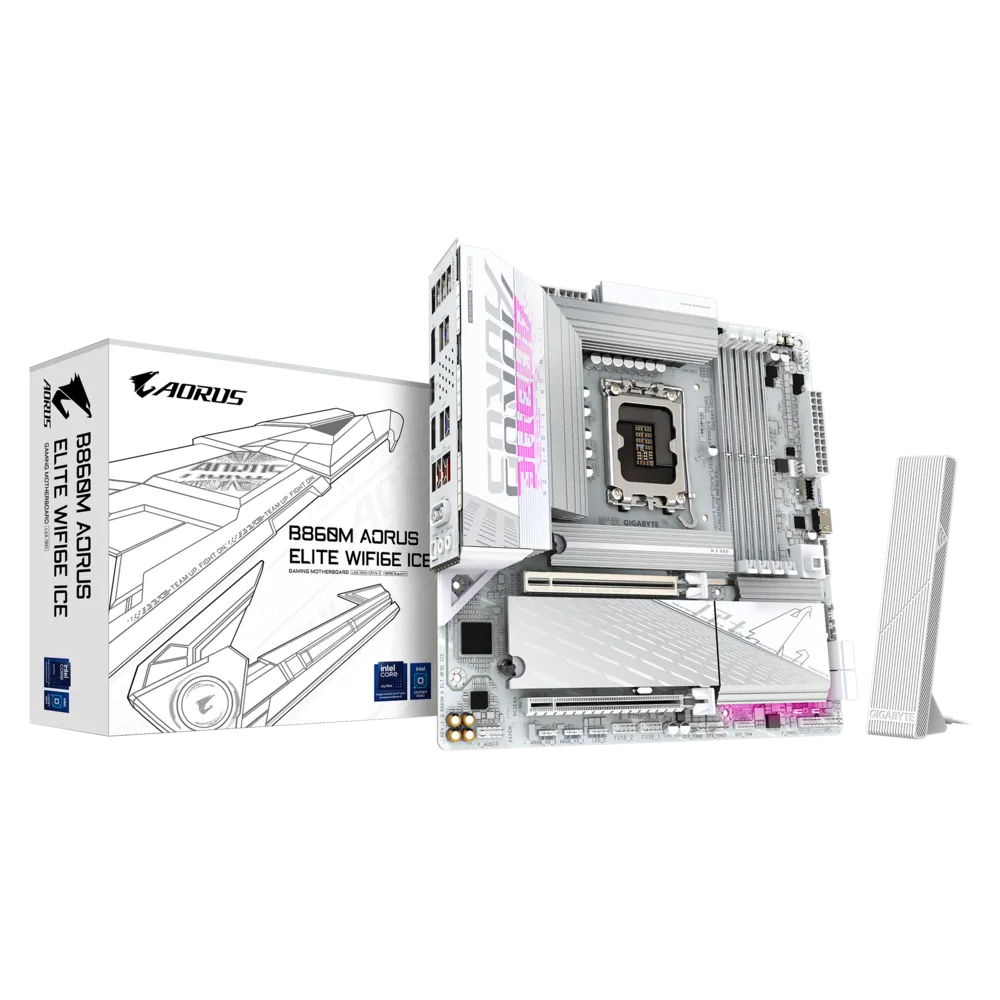

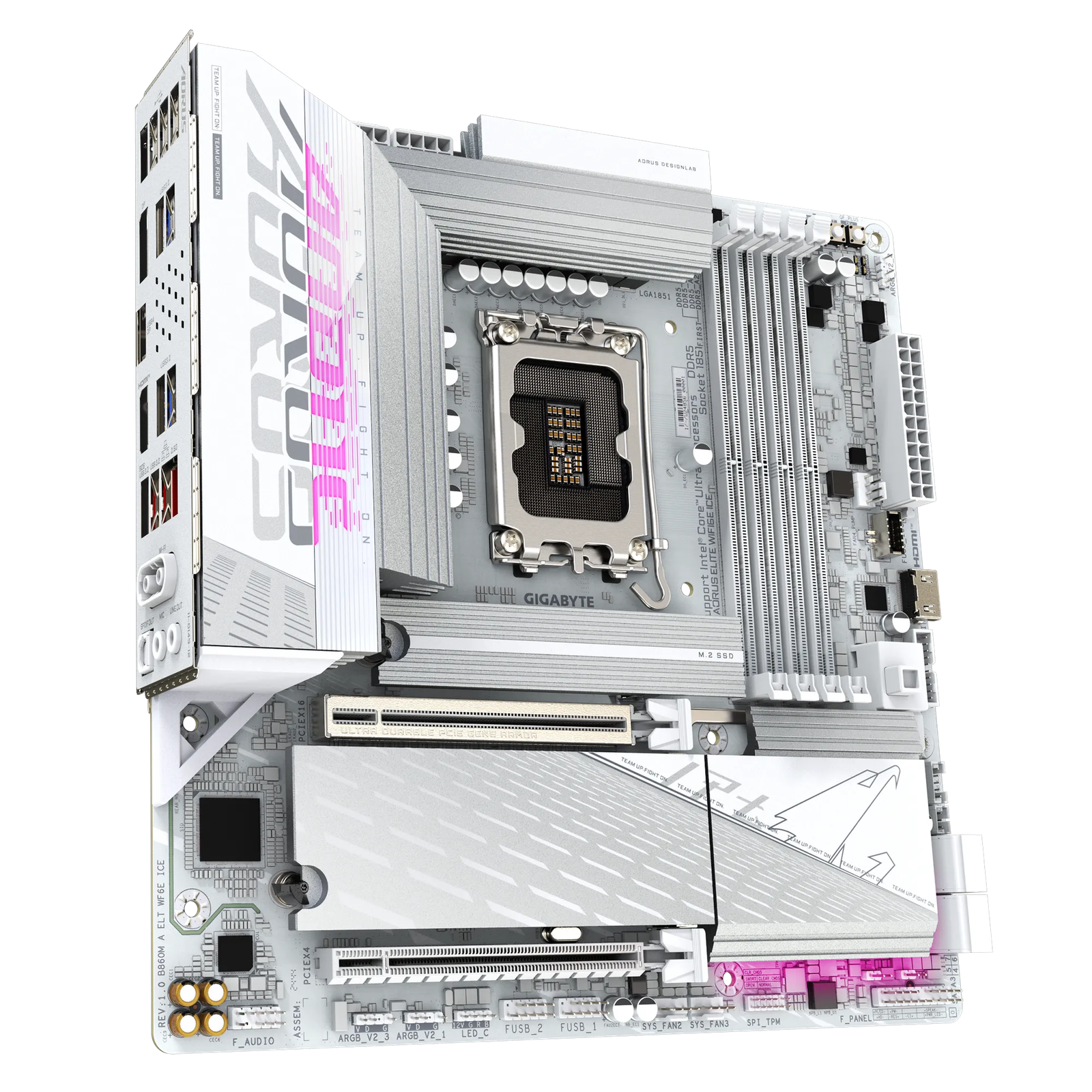

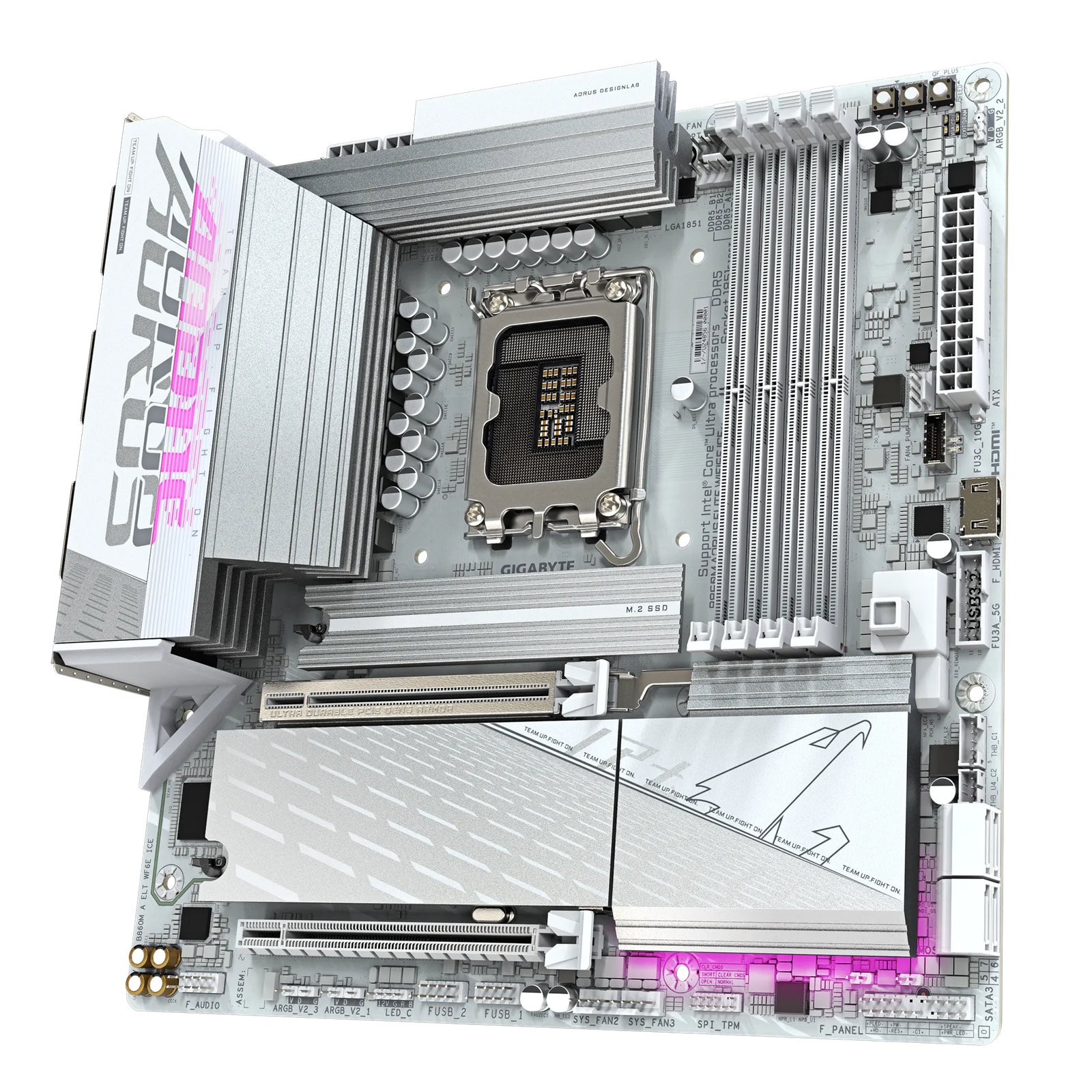

GIGABYTE B860M AORUS ELITE WIFI6E ICE mATX Motherboard – Intel B860. LGA 1851. DDR5. 3× M.2 (1× PCIe 5.0). Wi-Fi 6E. USB4 Type-C

GIGABYTE B860M AORUS ELITE WIFI6E ICE mATX Motherboard – Intel B860. LGA 1851. DDR5. 3× M.2 (1× PCIe 5.0). Wi-Fi 6E. USB4 Type-C：圖片 2

GIGABYTE B860M AORUS ELITE WIFI6E ICE mATX Motherboard – Intel B860. LGA 1851. DDR5. 3× M.2 (1× PCIe 5.0). Wi-Fi 6E. USB4 Type-C：圖片 3

GIGABYTE B860M AORUS ELITE WIFI6E ICE mATX Motherboard – Intel B860. LGA 1851. DDR5. 3× M.2 (1× PCIe 5.0). Wi-Fi 6E. USB4 Type-C：圖片 4

GIGABYTE B860M AORUS ELITE WIFI6E ICE mATX Motherboard – Intel B860. LGA 1851. DDR5. 3× M.2 (1× PCIe 5.0). Wi-Fi 6E. USB4 Type-C：圖片 5

GIGABYTE B860M AORUS ELITE WIFI6E ICE mATX Motherboard – Intel B860. LGA 1851. DDR5. 3× M.2 (1× PCIe 5.0). Wi-Fi 6E. USB4 Type-C：圖片 6

Category: 主機板

GIGABYTE B860M AORUS ELITE WIFI6E ICE mATX Motherboard – Intel B860. LGA 1851. DDR5. 3× M.2 (1× PCIe 5.0). Wi-Fi 6E. USB4 Type-C

Name: GIGABYTE B860M AORUS ELITE WIFI6E ICE mATX Motherboard – Intel B860. LGA 1851. DDR5. 3× M.2 (1× PCIe 5.0). Wi-Fi 6E. USB4 Type-C
SKU: B860M A ELT WF6E ICE-30174252
Availability: InStock

1000 件庫存

$3,050.00

SKU: B860M A ELT WF6E ICE-30174252 Category: 主機板 Tag: ALNABAA_IT

描述
評價 (0)

描述

Motherboard Specifications

Comprehensive Technical Details

Socket: Intel® LGA 1851 – supports Intel® Core™ Ultra (Series 2) processors

Chipset: Intel® B860 Express

Form Factor: Micro-ATX

Power Design & VRM: 12+1+2 Twin Digital VRM design with 6-layer PCB and 2× copper; 6+6 phase parallel architecture for CPU & memory delivery

Memory: 4× DDR5 DIMM slots. Dual Channel; supports DDR5 XMP and frequencies up to ~9200 MHz (O.C.)*

Expansion Slots: 1× PCIe 5.0 x16 (graphics card slot) + 1× PCIe 4.0 x16 (runs at x4)

Storage: 3× M.2 slots: 1× PCIe 5.0 x4 M.2 + 2× PCIe 4.0 x4 M.2. plus 4× SATA 6 Gb/s ports (RAID 0/1/5/10 supported)

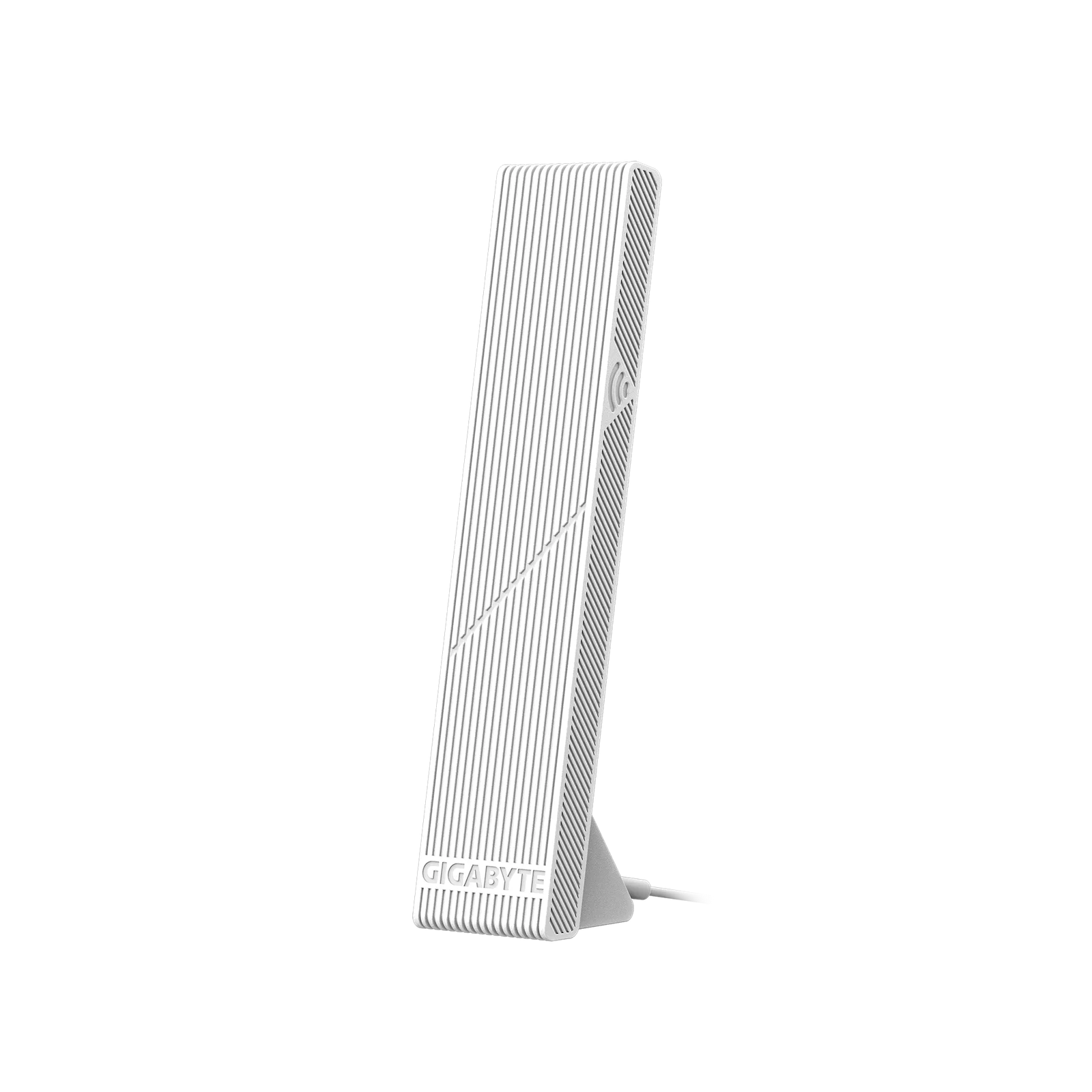

Networking: Integrated Wi-Fi 6E with ultra-high-gain directional antenna + Realtek® 2.5 GbE LAN

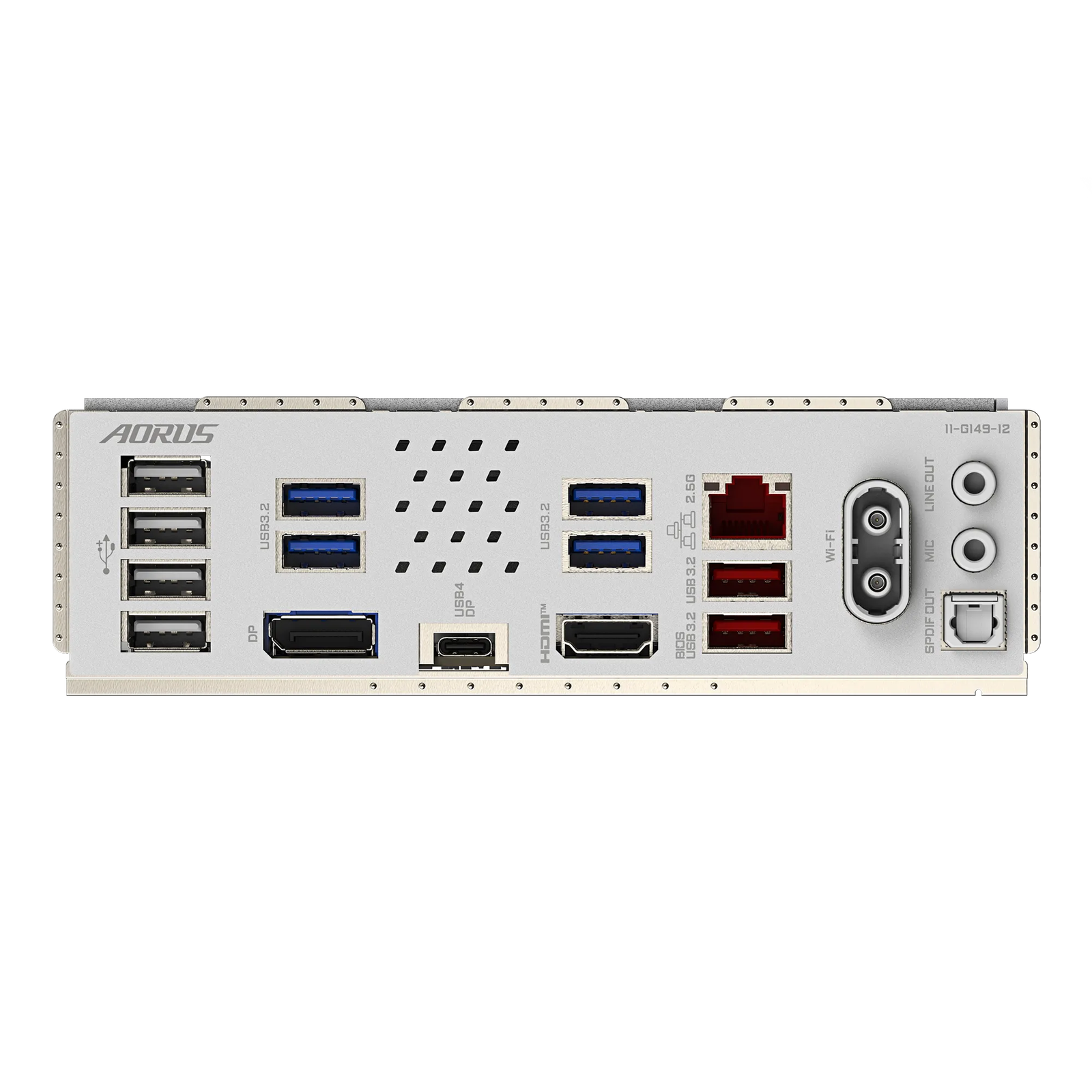

USB Connectivity: USB4® Type-C with DisplayPort Alt (up to 40 Gbps) + multiple USB 3.2 / USB 2.0 ports

Display Outputs: 1× HDMI and 1× DisplayPort for integrated graphics

Thermal & Build Features: VRM Thermal Armor Advanced with 5 W/mK thermal pad. M.2 Thermal Guard. Smart Fan 6 support with multiple headers and dual fan-curve mode

DIY-Friendly Features: EZ-Latch Plus (screwless PCIe & M.2 design). Sensor Panel Link (on-board video port for chassis panel)

Ideal for: Enthusiast gaming or productivity builds requiring next-gen CPU/memory support. high-speed storage. Wi-Fi 6E. and a compact micro-ATX footprint
